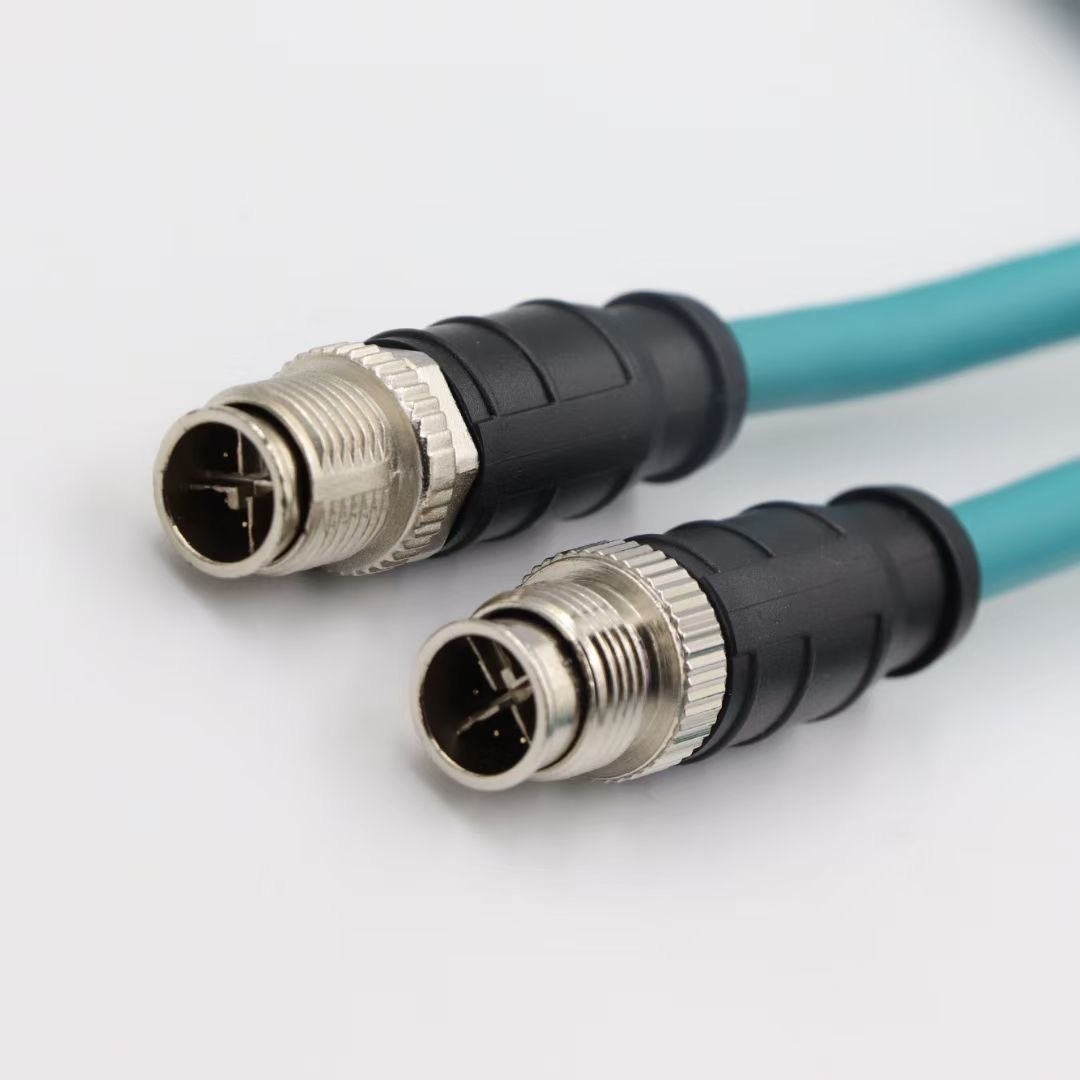

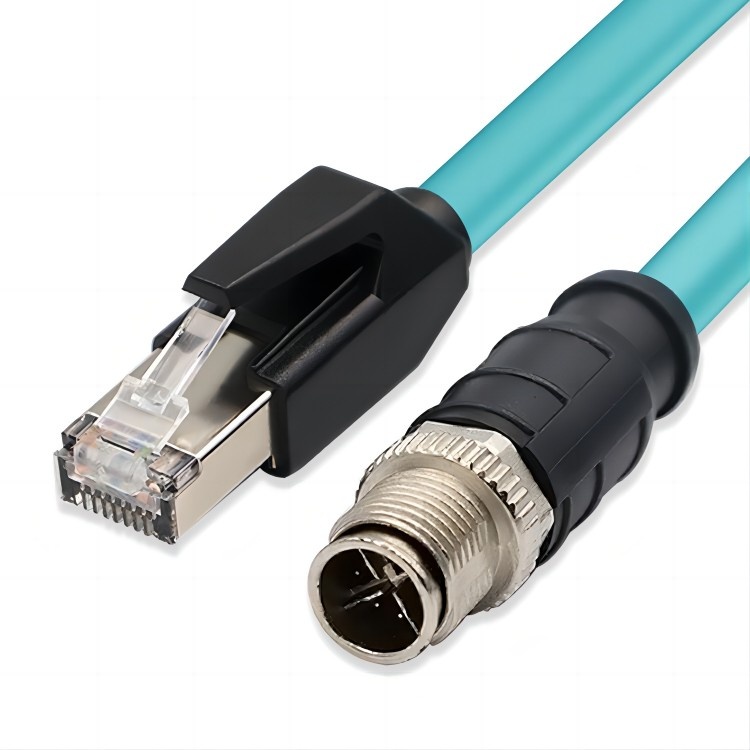

  • M12 4 Pin X Code Male Connector to RJ45 Male Plug Industry Ethernet cable
  • M12 4 Pin X Code Male Connector to RJ45 Male Plug Industry Ethernet cable
  • M12 4 Pin X Code Male Connector to RJ45 Male Plug Industry Ethernet cable
  • M12 4 Pin X Code Male Connector to RJ45 Male Plug Industry Ethernet cable
M12 4 Pin X Code Male Connector to RJ45 Male Plug Industry Ethernet cable M12 4 Pin X Code Male Connector to RJ45 Male Plug Industry Ethernet cable M12 4 Pin X Code Male Connector to RJ45 Male Plug Industry Ethernet cable M12 4 Pin X Code Male Connector to RJ45 Male Plug Industry Ethernet cable

M12 4 Pin X Code Male Connector to RJ45 Male Plug Industry Ethernet cable

 M12 4 Pin X Code Male Connector to RJ45 Male Plug Industry Ethernet cable
Specification
Model
cat5E M12-RJ45  lan cable

Specification

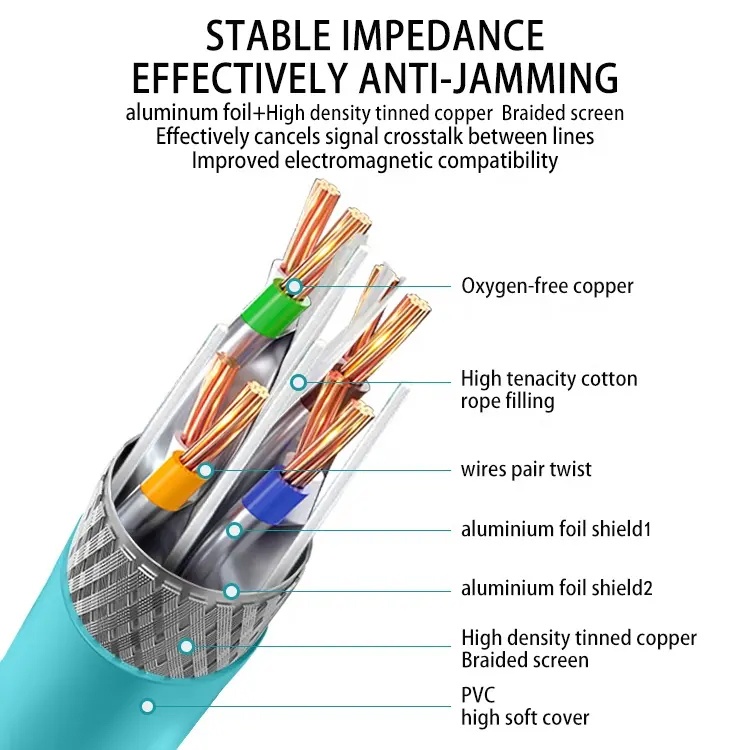

CAT5E SF/UTP 2P+F+AL+B

Conductor Material
COPPER

Certification
RoHS/REACH/CE/CCC/ISO9001

Conductor Size
2 pairs 24AWG( 7/0.18mm)

Performance
1Gbps transmission speed, bandwidth 100MHz, Supports 10000Base-T 1G Ethernet protocol, Stable transmission speed of 1Gbps

Number of Conductor
2 Pairs / 4 Cores

Shield
SF/UTP Optional

Insulation Material
HDPE

Jacket Material
PVC, LSZH

Outer Jacket OD
6.5mm

Operating Temperation
-20℃~60℃

Color(choose or Customized)
Green

Marking On Jacket
On your request (Print your brand)
